Plywood Manufacturing Equipment Wood Veneer Patching Machine for Plywood Making

Plywood Manufacturing Equipment Wood Veneer Patching Machine for Plywood Making

Item No.	AVPM-740-S-C001

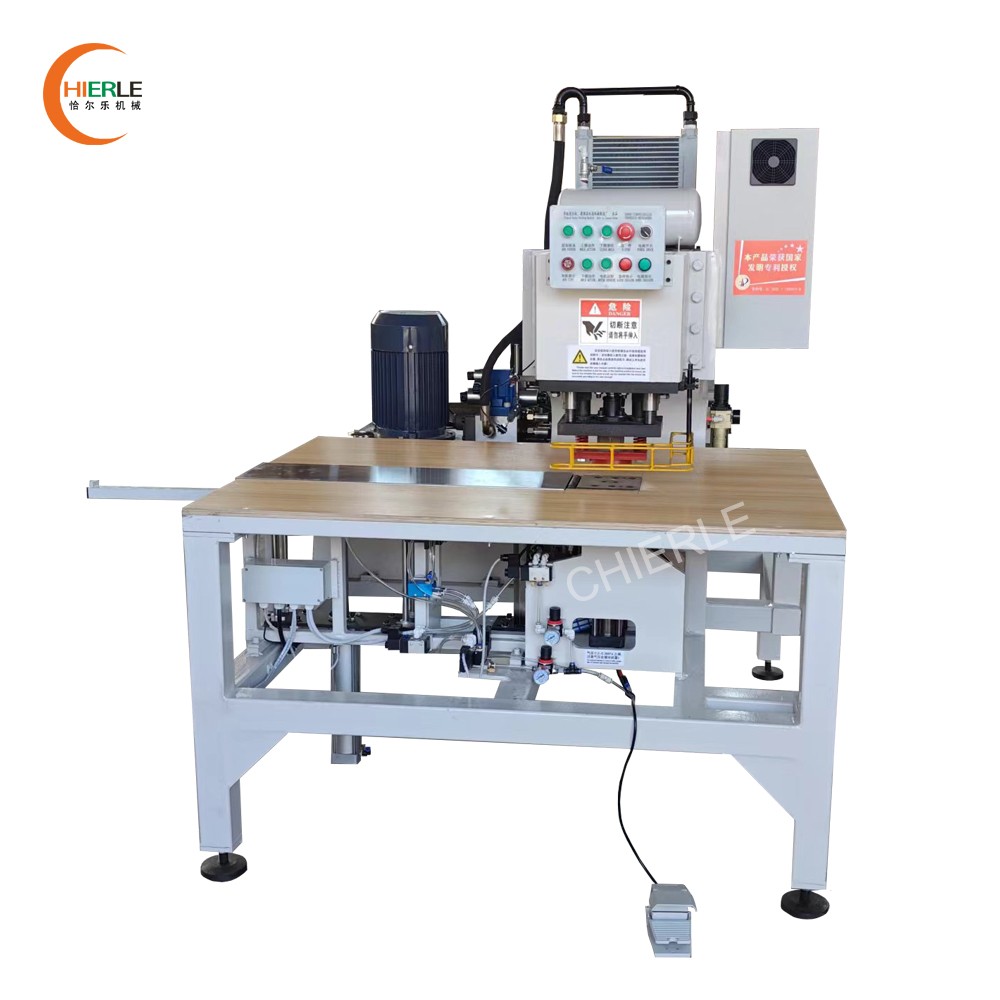

Product Name	Automation Veneer Patching Machine
Mending Veneer Thickness	0.5-4mm
Voltage	220V380V/415V /440V-50Hz, Customizable
Core Components	Hydraulic System,Punching moulds，Electrial Control System

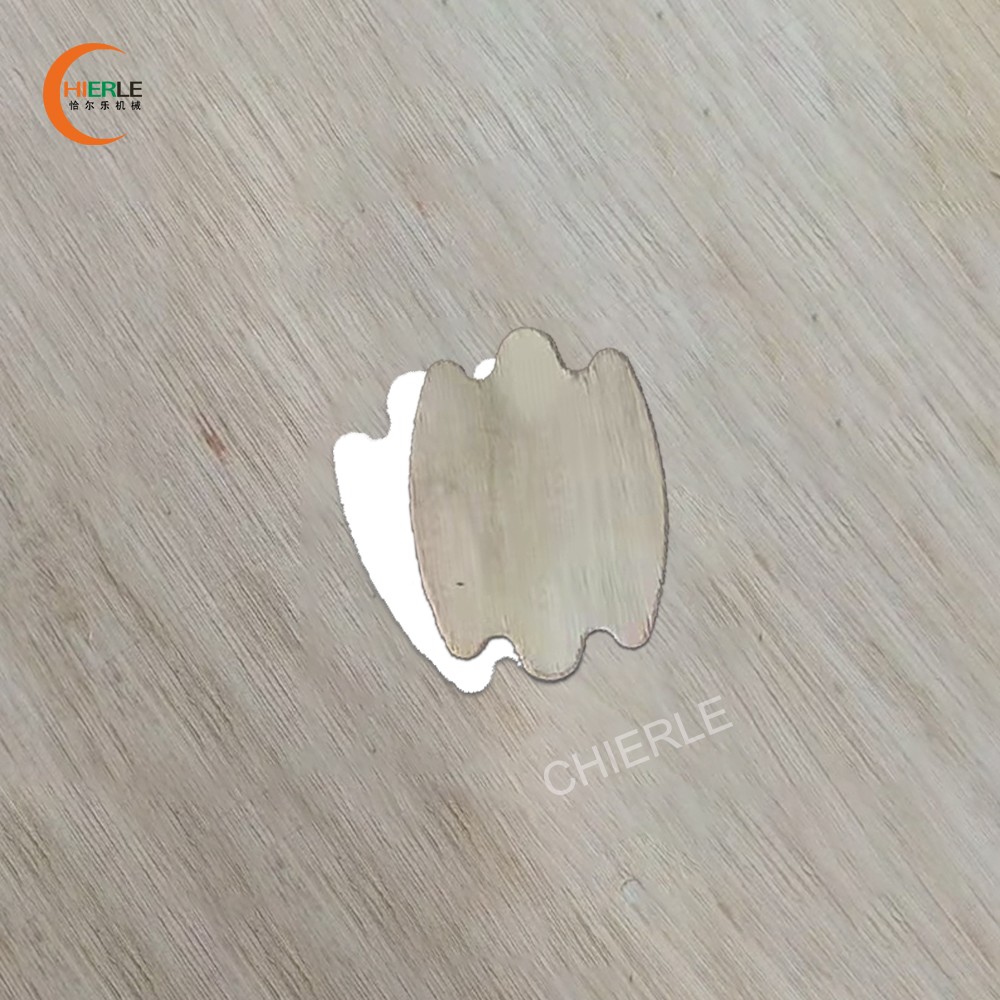

Patch Size	Min 5033mm; Max 15080mm
Size of worktable	1650*1950mm Throat deepth 740mm
Product Size	165019502000mm
N.W.	1.3T
Speed of Patching	60patches/min
Production Capacity	30 sets/month
Application Field	Plywood/Veneer Manufacturers (OEM/ODM supported) Woodworking Machinery Distributors & Agents
Feature	Only one operator. Reduce material waste by up to 30%. Patented veneer patching machinery. Small size needs a very little floor space. Hydraulic pressure. Servo motor feeding and connection automaically.
Package Size	165015502000mm
Warranty	12 Months
MOQ	1 set
Packaging Detail	Plastic Film for machine, other parts are packed in carton. Wooden packaging can be customzied if needed.
Delivery Time	30 days after deposit
Payment Term	T/T, LC.
Shipping Term	By sea
Place Of Origin	Yancheng，China
Port Of Deperture	Shanghai Port
Notes:	More specifications and demo videos, please contact us.

How to choose a veneer patching machine?

There are two kinds of veneer patching machine, one is patched manually, the other is automated.

Manual patching machines are suitable for almost all veneers and large-diameter defects, cost-lower, low production efficiency, but can match various kinds of die moulds.

Automated patching machines are suitable for small and middle defects, stamping and patching are completed in one go, cost-higher, significantly faster, more efficient and safer than patching manually.

Please contact us to choose a better machine for you. To tell us about the kinds of log, size of single veneer (length, width, thickness), minimum and maximum size of patching, style and QTY.

Note: Different rotary cutting veneer has different defects, so the size of die moulds can be customized.
